18GHz Female 50Ω Microstrip Mini SMA RF Connector
|
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
Detaylı ürün tanımı
| Öğe: | SMA RF Konektörü | Kaplama: | Altın kaplama |
|---|---|---|---|
| Cinsiyet: | Dişi | İmpedans: | 50Ω |
| Sıklık: | DC~18GHz | Yaşam süresi: | 500 Döngü |
| Vücut: | Pirinç | Uygulama: | Ses/Görüntü/Mikrodalga |
Brass Gold Plated Female Microstrip Series Mini SMA RF Connectors
SSMA series RF coaxial connectors are miniaturized products of SMA connectors, which have the characteristics of small size, wide frequency bandwidth and high reliability. It is widely used in aviation, aerospace, microwave communications and other fields.
Key Features:
- Space saving alternative to standard SMA
- Threaded coupling mechanism offers reliability for rugged designs
- Suitable for high-frequency applications
Specifiacation of SSMA Rf Connectors:
| Electronic and Material Characterials | ||
| Impedance | 50Ω | |
| Frequency Range | DC~30GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) | |
| VSWR | ≤1.3 | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated | |
| Shell and other metal parts | Brass gold plated | |
| Stainless steel passivated | ||
| Cable sheath | Brass nickle plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |
Product Cataloge:
| RF Adapter |
| SMA RF Connector |
| SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
Application:
- Microwave Systems Telecommunications
- Civil & Military Aeronautics
- Military Equipment,
- Space
- 5G Solutions
- Measurement Systems
- Mobile Telephone WiFi Antennas Systems

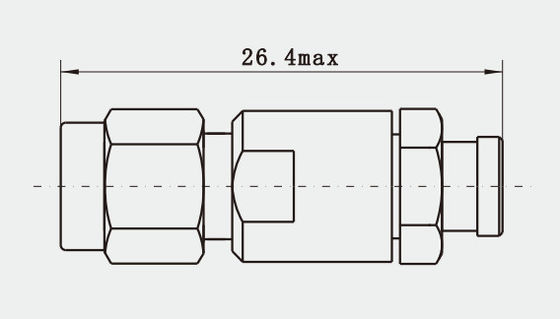

Interface Dimentions:
Related Product
1.Mini SMA Microstrip series 2 Hole Flange Connectors
2.Mini SMA PCB Panel Mount 4 Hole Flange Connectors
3.SMA Female RF Connectors for cable RG178
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
