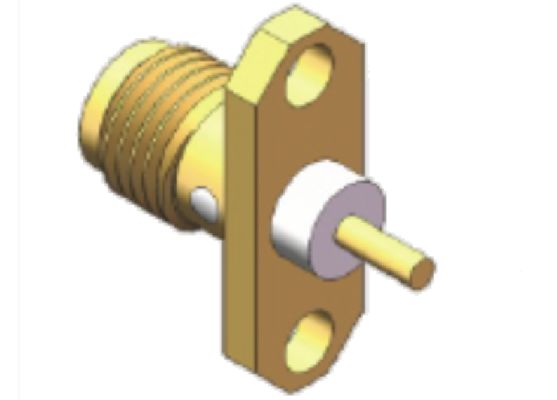

2 Holes Flange Mount SMA Female RF Coaxial Connector Panel Mount SMA Jack Frequency Up To 18GHz
|
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
Detaylı ürün tanımı
| Ürün adı: | 2 delikli flanşlı SMA Erkek Konnektör | Model: | SMA-KFD212 |
|---|---|---|---|
| Anlamlılık: | 50Ω | Frekans aralığı: | 0.3MHz-18GHz |
| VSWR: | <1.3 | Yalıtım direnci: | >5000MΩ |
| DWV: | 335V | Vida standardı: | 1/4-36UNS |
| Konut malzemeleri: | Bakır alaşım, altın plak | Orta temas: | Bakır alaşım, altın plak |
| Yalıtkan: | Ptfe | Sıcaklık: | -55°C~+125°C |
| Örnekler: | Stokta var | ||
| Vurgulamak: | 2 holes flange mount SMA connector,SMA female RF coaxial connector,panel mount SMA jack 18GHz |
||
Product Description:
The SMA RF coaxial connector is a small, high frequency coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, Series This series of high performance connectors developed by Elite Electronic can reach up to 18GHz. It is the most widely used RF coaxial connector and widely used in microwave communication and microwave measurement equipment.
If you want high frequency SMP connectors up to 26.5GHz, 35GHz or 40GHz, please choose our 3.5mm series connectors and 2.92mm series connectors. 3.5mm series connetcors can reach up to 35Ghz, 2.92mm connectors can reach up to 40Ghz. The screw standard of 3.5mm and 2.92mm connectors are same with SMA connectors as 1/4-36UNS. Please contact us for more models if the following products can not meet your demand.
|
Electrical Characteristics
|
||
|
Impedance
|
50Ω
|
|
|
Frequency Range
|
DC~18GHz
|
|
|
Rated Voltage
|
335VRMS
|
|
|
Dielectrics Voltage-resistance
|
1000VRMS
|
|
|
Insulation Resistance
|
≥5000MΩ
|
|
|
|
Outer conductor
|
Normal≤2mΩ
|
|
Center conductor
|
Normal≤3mΩ
|
|
|
VSWR
|
Straight | <1.3 |
| Right Angle | <1.35 | |
The outline demension of SMA Female flange mount Connector (Unit: mm): SMA-KFD212 ( In stock )
Other Similar SMA Female flange mount Connector (Unit: mm): SMA-KFD217 ( In stock )
Other Similar SMA Female flange mount Connector (Unit: mm): SMA-KFD474 ( In stock )
More products, please contact us freely for the Flange mount Panel mount SMA Connectors catalog sales3@xa-elite.com.cn
Applications:
Xi'an Elite Electronic is a leading manufacturer of RF Connectors & Adapters, Microwave/Waveguide components & Cable Assemblies, serving in aerospace, aviation, navigation, satellite, radar, communications fields for more than 23 years.
Customization:
Product Customization Services for SMA RF Connector are available:
Brand Name: ELT
MOQ: 200 pcs
Price: Depending on the quantity
Please send us the drawing or details and we will let our engineer to arrange the evaluation or we recommend us the alternative model or supply our solution to you.
We also can supply the customization for the connectors such as SMA, SSMA, SMP, SSMP(SMPM), CSMP(SMPS), ASMP, N, TNC, TNCA, TMA, BMA, SBMA, 2.92mm, 2.4mm, 1.85mm, Micro D Connectors, RF loads, Antennas, Filters, Power Dividers, Coupler.
Packing and Shipping:
Packaging for SMA RF Flange Mount Connector:
1 Piece/ small plastic bag
10 Pieces/ larger plastic bag
100 Pieces/ carton box
The SMP RF Male Plug Connector comes securely packaged in a small cardboard box to ensure its protection during shipping. The box is labeled with the product name and specifications for easy identification.
For shipping, the SMA RF Male Connector is placed in caron. We will supply the tracking No after shipping.
