50ohm SSMA RF Connector Male Female Frequency Range DC to 18GHz flange mount for Stability in Communication and Radar Systems

Product Description:

SSMA connectors are a type of miniature coaxial RF connector, typically used in high-frequency applications. Their design features include:

Small Size: SSMA connectors are smaller than standard SMA connectors, making them suitable for space-constrained applications.

Frequency Range: They typically support frequencies up to 18 GHz, making them ideal for high-frequency signal transmission.

Connection Method: They use a threaded connection, ensuring a stable and reliable connection.

Application Fields: They are widely used in high-frequency fields such as aerospace, communication equipment, and test instruments.

With their compact design and high performance, SSMA connectors have become one of the commonly used connectors in high-frequency applications.

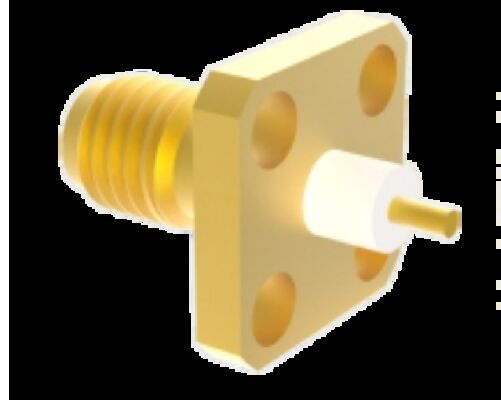

SSMA female flange mount connector  (Model No.: SSMA-KFD11)

Please contact us more details, if you are interesting this products.

Features:

• Product Name: SSMA RF Connector
• Location: Xian, China
• Screw: 10-36UNS-2
• Center Conductor: Copper Alloy with Gold Plating
• Insulation Resistance: ≥5000MΩ
• Impedance: 50ohm
• SSMA PCB mount connector for reliable and secure connections
• Mini SMA female through hole connector design for easy installation

Technical Parameters:

Applications:

Typical scenarios for using the SSMA connector include high-frequency signal transmission in radar systems, wireless communication devices, test and measurement equipment, and satellite communication terminals. The connector ensures stable, high-frequency performance with excellent mechanical and environmental resilience.

Customization:

Elite Electronics offers comprehensive product customization services for the SSMA RF Connector series, Our connectors are manufactured in Xi'an City, China, and come with ISO9001 and ISO14001 certifications, ensuring high quality and environmental standards.

We specialize in Mini SMA female through hole connectors as well as Mini SMA right angle connectors, providing versatile options to meet your specific requirements.

Our minimum order quantity is 200 pieces for costomization.

Packing and Shipping:

Packaging & Shipping for SSMA RF Connector

The SSMA RF Connector is carefully packaged to ensure maximum protection during transit. Each connector is individually sealed in anti-static bags to prevent any electrostatic discharge damage. The connectors are then placed in sturdy, cushioned boxes to avoid any physical impact or damage.

FAQ:

Q1: Are you trading company or manufacturer ?
A: We are manufacturer with over 23+ years experience on RF/Microwave Interconnect Components .

Q2: What products can you provide currently?
A: RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components.

Q3: Is free sample available?
A: Yes, if have stock, free sample is available with freight collected.

Q4: Can your company accept customize?
A: ODM is welcomed. With more than 23+ years experience in ODM, Elite Electronics can assist in design, product development, research & development and integration of your interconnect products.

Q5: What are the Payment Terms ?
A: We can accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T), etc.

Q6: What is the lead time?
A: 5 days for sample orders, 3-4 weeks for mass production orders (based on different quantities, ODM , etc.)

Q7: How will you deliver goods to me?
A: Generally, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly but with the lowest freight. Meanwhile, ship by air and by sea is also available.

Q8: How long do I need to wait before my goods arrive?
A: 5-8 workdays for air transportation, 3-8 workdays for international express.

Q9: How is your product quality?
A: As the high-quality suppliers of many national high-tech projects, providing excellent products is our way of development. We have a strong quality control team and very strict process to guarantee our quality according to different quality grade standard.

Q10: What is your warranty?
A: Our warranty is 3 months after delivery, Elite Electronic pays high attention to after-sales service.
