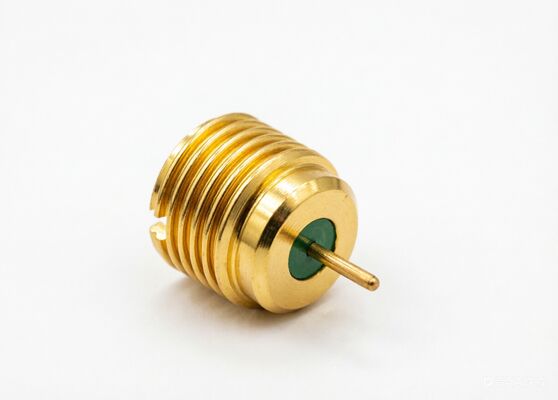

Gold Plating Hermetic SMP RF Connector Male Bulkhead with Glass Sealing 18GHz 50 Ohm

Ben sohbet şimdi
Sertifika
Çin Xi'an Elite Electronics Co., Ltd. Sertifikalar
Çin Xi'an Elite Electronics Co., Ltd. Sertifikalar
Ürün tam olarak beklendiği gibi ve kaliteli idi. Servis mükemmeldi. Kesinlikle tekrar sipariş edecek.

—— Gregory, ABD

Gereksinimlerimi anladım ve doğru parçaları aradım.

—— Ian, Yeni Zelanda

Sizinle çalışmak büyük bir zevkti ve yardımınız ve öneriniz için teşekkür ederim. Yakın bir gelecekte daha fazla copperation olacağını umuyoruz.

—— Terence, Singapur

SMP konektörleri yüksek kalitededir, sızıntı oranı 1 * 10 ^ -9 mbar * l / s değerine ulaşabilir. Böyle bir ekonomik fiyat ile büyük bir anlaşma.

—— Jonh, Birleşik Devletler

Profesyonel Satıcı

—— Abdu, Suudi Arabistan

Yüksek frekanslı bağlantılarınızı aldım ve gerçekten iyi!

—— Jacky, Kore

Kabloları test ettik ve hepsi beklendiği gibi çalışıyor.

—— Josh, İngiltere

Gold Plating Hermetic SMP RF Connector Male Bulkhead with Glass Sealing 18GHz 50 Ohm

Gold Plating Hermetic SMP RF Connector Male Bulkhead with Glass Sealing 18GHz 50 Ohm
Gold Plating Hermetic SMP RF Connector Male Bulkhead with Glass Sealing 18GHz 50 Ohm

Büyük resim :  Gold Plating Hermetic SMP RF Connector Male Bulkhead with Glass Sealing 18GHz 50 Ohm En iyi fiyat

Ürün ayrıntıları:
Menşe yeri: Xi'an, Çin
Marka adı: ELT
Sertifika: Rohs,ISO Certificates
Model numarası: SMP(M)-JYD43
Ödeme & teslimat koşulları:
Min sipariş miktarı: Stokta var
Fiyat: Depending on the quantity
Ambalaj bilgileri: 1pcs/plastik torba; 10bag/karton
Teslim süresi: Yeni üretim için 6-8 hafta
Ödeme koşulları: T/T veya LC
Yetenek temini: Gereksinimler olarak
Detaylı ürün tanımı
Ürün adı: SMP RF Konektörü Sıklık: DC~18GHz
Merkez İletişim: Bakır Alaşımı , Altın Kaplama Kabuk: Bakır Alaşımı , Altın Kaplama
Yalıtım Direnci: 5000Ohm DWV: 500V
Nominal Gerilim: 170V Bağımsızlık: 50Ω
Sıcaklık Aralığı: -55°C~+125°C Cinsiyet: erkek fiş
Dielektrik: PTFE Montaj: Bölme Montajı
Örnekler: Mevcut, Stokta Var Arayüz: Tam Kilit Sınırlı Kilit Pürüzsüz Delik
Pin OD: 0,3 mm, 0,45 mm, 0,5 mm, 0,7 mm, 0,9 mm, 1,3 mm mevcuttur
Vurgulamak:

Gold plating SMP RF connector

,

Hermetic SMP connector with glass sealing

,

Bulkhead SMP connector 18GHz 50 Ohm

Product Description:

Stainless Steel SMP RF Connector Male Bulkhead Full Detent Limited Detent Smooth Bore 18GHz 50 Ohm

Elite Electronics' SMP RF connectors ensure superior signal integrity up to 40 GHz. Their innovative, tool-free push-on interface accelerates production by eliminating bulky wrenches.
Choose from straight, right-angle, or flange-mount options with three male plug configurations—Full Detent, Limited Detent, and Smooth Bore—to optimize retention force and density
for your specific application.


Force Comparison: Insertion and extraction force follows the hierarchy: Full Detent > Limited Detent > Smooth Bore.

Outline Dimension of Stainless Steel SMP RF Connector male bulkhead connector  Model : SMP(M)-JYD43

Gold Plating Hermetic SMP RF Connector Male Bulkhead with Glass Sealing 18GHz 50 Ohm 0

Model No. L d Interface Note
SMP(M)-JYD43 2.7mm 0.39 Limited Detent Hermetic,Engagement Depth: 2.79mm
SMP(M)-JYD43-S 2.7mm 0.39 Smooth Bore Hermetic,Engagement Depth: 2.79mm
SMP(M)-JYD65 1.5mm 0.3 Limited Detent Hermetic,Engagement Depth: 2.79mm
SMP(M)-JYD82 2.1mm 0.39 Limited Detent Hermetic,Engagement Depth: 2.79mm
SMP(M)-JYD82-S 2.1mm 0.39 Smooth Bore Hermetic,Engagement Depth: 2.79mm
SMP(M)-JYD92-F 2.9mm 0.6 Full Detent Hermetic,Engagement Depth: 2.79mm


Gold Plating Hermetic SMP RF Connector Male Bulkhead with Glass Sealing 18GHz 50 Ohm 1

Model No Interface Hermetic,Engagement Depth: 2.79mm
SMP(M)-JYD10 Limited Detent Hermetic,Engagement Depth: 2.79mm
SMP(M)-JYD10-S Smoth Bore Hermetic,Engagement Depth: 2.79mm
SMP(M)-JYD10-F Full Detent Hermetic,Engagement Depth: 2.79mm
SMP(M)-JYD10G Limited Detent Hermetic,Engagement Depth: 2.79mm

 Note: we also have the pin OD =0.3, 0.45, 0.5, 0.7, 0.9, 1.3, please feel free to contact us if you need different size pins.

Applications:

Xi'an Elite Electronics is a Leading Manufacturer of RF/Microwava /Wave-guide Connectors, Adapters & Cable Assemblies serving aerospace, aviation, navigation, satellite, radar, communications, electronics industry.
Gold Plating Hermetic SMP RF Connector Male Bulkhead with Glass Sealing 18GHz 50 Ohm 2

Packing & Shipping:

Packaging:

Package Dimensions: Outer Small Carton with L 26.5cm *W18.5cm *H14cm


Shipping:

Shipping Time: 5-10 working days for stocked RF Coaxial Adapters Connector. For the new production, it will takes about 8-12 weeks, The delivery time we provide is conservative to ensure product quality before shipment.

Gold Plating Hermetic SMP RF Connector Male Bulkhead with Glass Sealing 18GHz 50 Ohm 3
