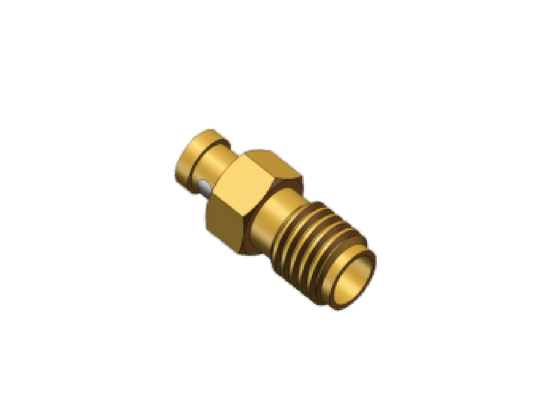

18GHz 50Ω Female Mini SMA Jack SSMA RF Coaxial Connector Mating Cable MF108A, CXN3506
|
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
Detaylı ürün tanımı
| Ürün adı: | SSMA Dişi Kablo Konnektörü | Modeli: | SSMA-K506 |
|---|---|---|---|
| Frekans Aralığı: | 0.3MHz-18GHz | Empedans: | 50Ω |
| DWV: | 750V | Yalıtım Direnci: | ≥5000MΩ |
| Merkez Şefi: | Bakır Alaşımlı, Altın Kaplama | Dış İletken: | Bakır Alaşımlı, Altın Kaplama |
| Bağlayıcı stili: | Dümdüz | Çiftleşme kablosu: | CNX3506, MF108A |
| İzolatörler: | PTFE | Örnekler: | Stokta var |
| Vurgulamak: | 18GHz SSMA RF coaxial connector,50Ω female mini SMA jack,SSMA RF connector mating cable |
||
50Ω 18GHz Female SSMA RF Coaxial Connector Mating for Cable CXN3506, MF108A (Cable OD 2.3mm)
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Feature:
- Compact design - 30% smaller than standard SMA connectors
- Wide frequency band operation up to 30GHz
- High reliability for demanding applications
- Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
- Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
Mini SMA Jack RF Coaxial Cable Connector Dimenstion:
Model No.: SSMA-K506 ( mating cable CXN3506, MF108A, Cable OD 2.3mm)
Model No.:SSMA-K506L ( mating cable CXN3506, MF108A, Cable OD 2.3mm )
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
Other Products Catalogs
| SMA SSMA RF Coaxial Connectors |
| SMP SMPM CSMP ASMP Connectors |
| mmW Connectors Catalog (2.92mm, 2.4mm, 1.85mm, 1.0mm, 0.8mm) |
| Between Series RF Adapter ( SMA to SSMA, SMP to SMPM, SMA to 2.92mm, SMA to N,SMA to SMP....) |
| N TNC TNCA Connectors |
| BMA SBMA Connectors |
| MCX & MMCX Connectors |
| Micro D Connectors J30J+J30J+J55A+J55AM+J56J |
| Hermetic Glass to Metal Seals |
| RF Coaxial Cable Assemblies |
| Customized Product (Antennas, Filters, Power Dividers, Coupler, Waveguide Components, Test Fixtures, Package Modules) |
For more product models information or specification, please check our catalog or contact our sales team through:
